Wireless Mobile Kit

$449.00

You can have it all with this professional, tour-grade LED controller!

Do you have the need to:

  • Light up a mobile prop on stage?
  • Light up your entire marching band turning them into individually controlled DMX fixtures that can also trigger on impact?
  • Light up any 12v RGB LED’s and have your lighting software control them?

Utilizing the latest wireless DMX chip set by Lumen Radio and built-in rechargable NIMH batteries our newest controller gives you the freedom you desire.

SKU: W-Mobile-Kit Category:

Description



Advanced features for a worry free show and quick status is available at a glance from the LCD display.

  • Full 36 watts of output power for even the largest drums
  • Tightly regulated output of 12 volts to guarantee even brightness over the full battery discharge cycle
  • High capacity NIMH batteries. No restrictions or worries associated with Lithium batteries
  • Built in smart charger which can charge the batteries and power the unit at the same time if the need arises
  • Multiple safety features which include: High temperature, over discharge, short circuit, overload

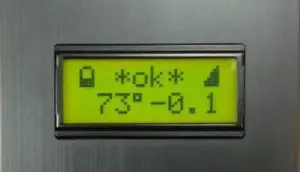

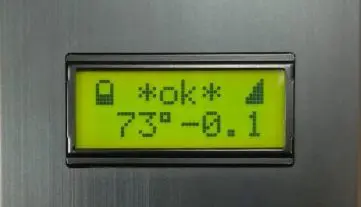

  • LCD indicators: Battery level, RF level, internal temp, battery current, system status



  • Complete DMX control of LED’s including the ability to turn on and off the trigger and keep a background color lit with a different strike color
  • Supports receiving CRMX, W-DMX™ G2, G3, G4 and G4S
  • Industry standard 4-pin XLR output connector and 1/4″ trigger jack
  • Rugged aluminum housing which doubles as a heat sink
  • Field replaceable battery pack
  • Proven BrightBeats quality

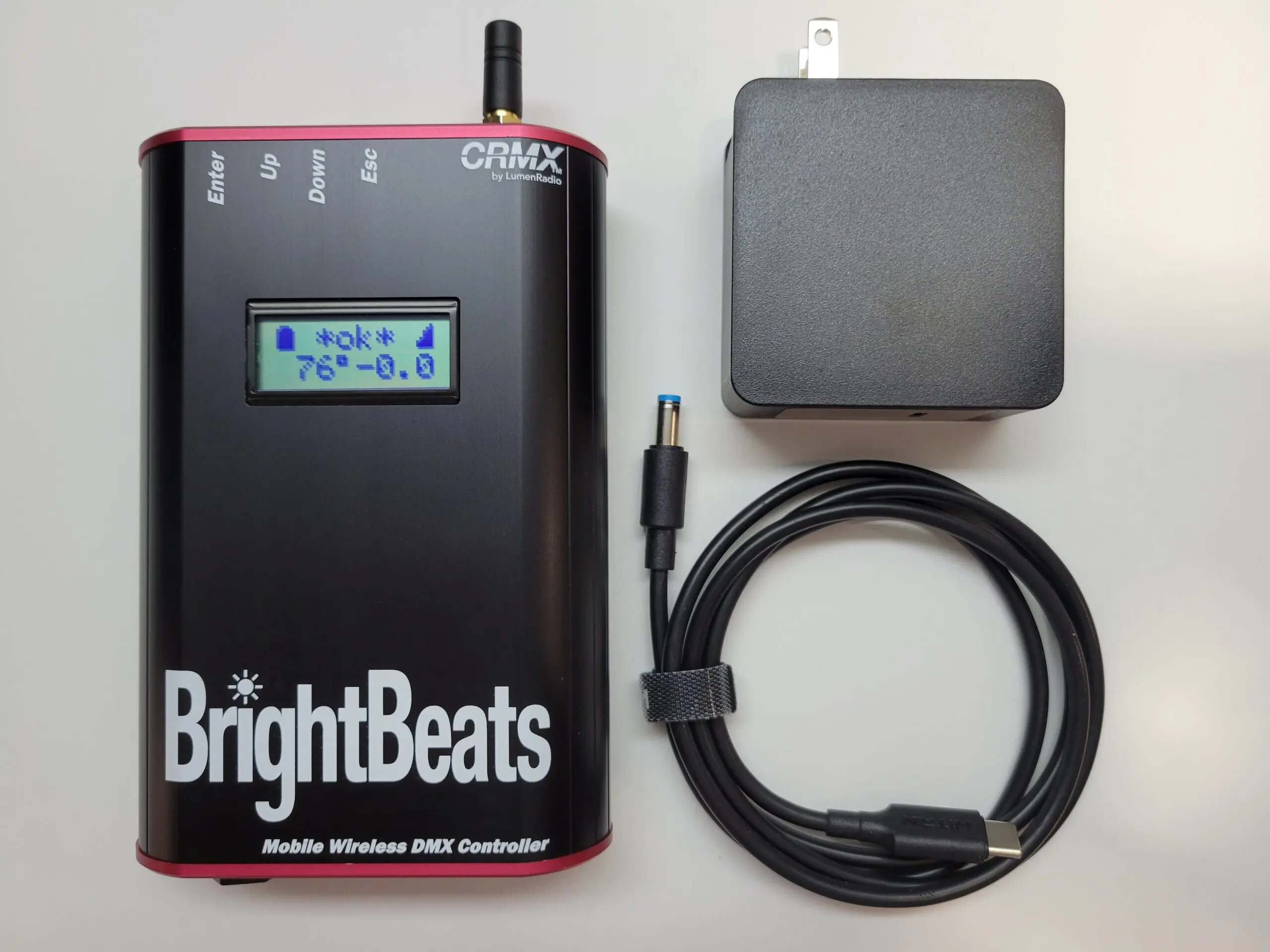

Full Kit includes: Controller, USB-C 60W power supply, USB-C charge cable, Stub antenna

Tech Specifications:

  • Dimensions: 148mm x 95mm x 45mm not including stub antenna
  • Weight: 23oz (.65kg)
  • Input: 19-20 volts DC 4.2 amps max
  • Output: 12 volts DC at 3 amps max, 3.5 amps surge
  • USB-C 60W power supply, USB-C charge cable and stub antenna included
  • Approximate run time at continuous full load and 25 deg C ambient – 30 minutes
  • Full charge in about 2.5 hours

** much longer run times typically will be attained for pulsed or varying output colors



Additional information

Weight 2.0 lbs
Dimensions 10 × 7 × 3 in
