Tiny One

Tiny One Single channel RGB triggered LED drum controller



Tiny-top

Compact unit for stationary or portable applications

  • Compact and rugged aluminum case.
  • Single channel output with up to 4 amps continuous output to drive even the largest drums.
  • BrightBeats exclusive MultFunction knob for changing settings without hassle. Back lit knob provides visual color feedback for each setting.
  • Click HERE if you are looking for a complete kit for marching drums!

Battery options

The Tiny One can run off of an external power pack supplied by the end user. There are many portable power pack options out there to choose from but it’s very important that the battery have the following:

  • Output must be regulated to 12 volts DC to prevent damaging your LED’s. Raw battery packs have wide voltage swings.
  • Good power packs will have an over discharge and over charge protection circuit as well as a over current protector to prevent damage.
  • Output connector that is 5.5mm x 2.1mm

Tiny-Panel



External control options

  • Dual foot switch jack allows the user to press one switch to shut down the lights or press the other switch to turn them on and disable the trigger.
  • Multiple units can be linked to one foot switch pedal using “Y” cables if needed.

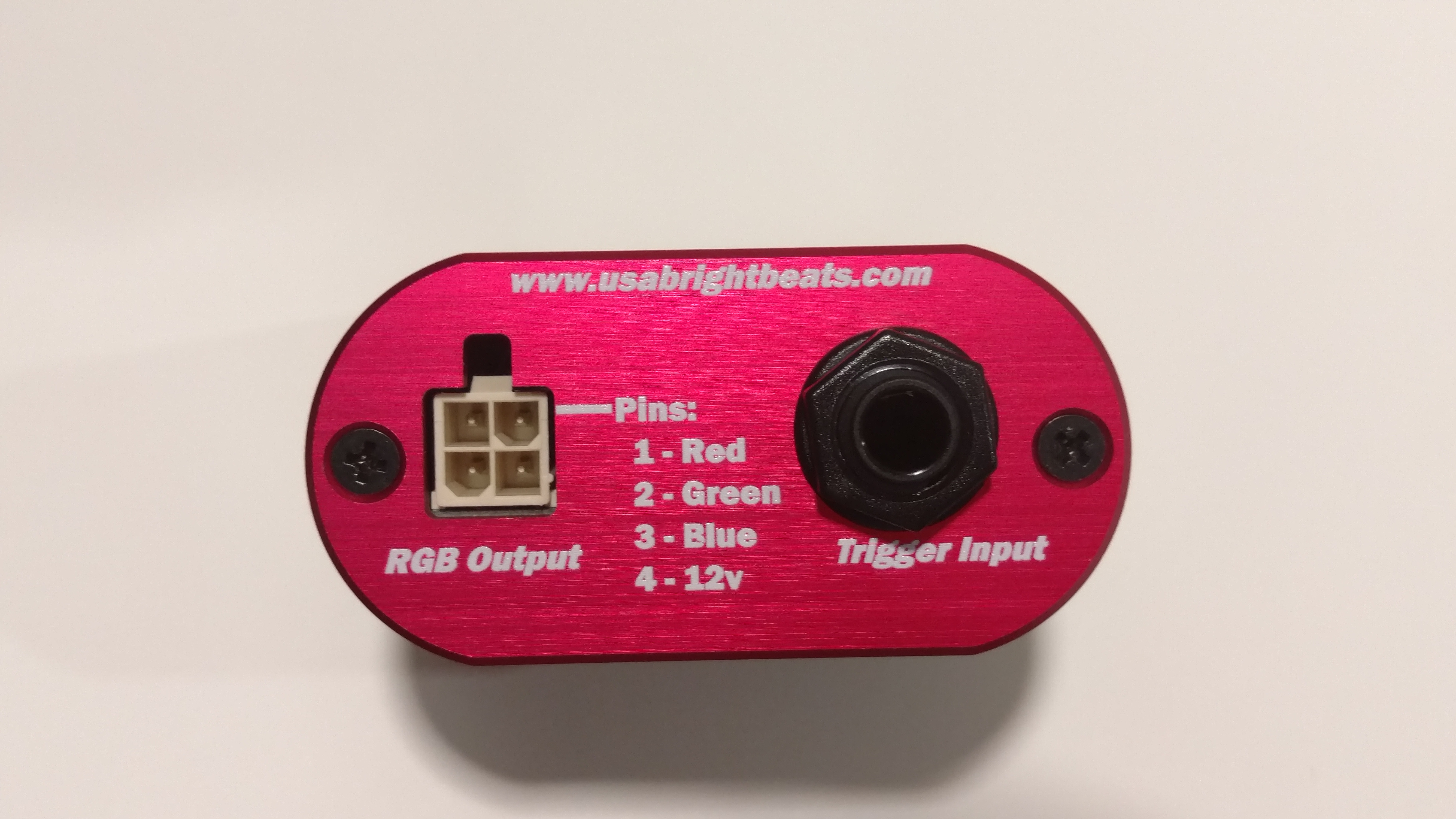

Tiny-Output

Input and output

  • Output connector is a 4 pin Molex plug. An adapter cable can be purchased for LED connections.
  • Input jack is a 1/4″ TRS connector. The ring on the trigger input is left floating so you can just use a “Y” splitter on dual zone electronic drums.



The Tiny One is a high quality single channel LED controller.

Unlike the competition our products are high power and high quality helping you stand out on stage!

Click here to Purchase from our Store

Contact Sales@usabrightbeats.com for more information.
